Insulating Spacers

Series 51306 Type: PSO

Nylon Insulating Spacers are round stand-offs in various sizes with through holes for insulating and spacing components on circuit boards and in electrical assemblies etc.

Material & Colour:-
Nylon66 Natural

To Specify Use: Series No / Part No (eg 51306 3560 02)

Click here to view this page as a PDF document.

Request Information:

About Series: Series 51306 Type: PSO

Chat (Loading...)

Enquire Now

∨

∧

Welcome:

Hello and welcome to chat, please enter a message below to begin...

Name: Email: Message:

Thank You

Your message has now been sent and we will get back to you as soon as possible.

If your enquiry is urgent we recommend you call us.

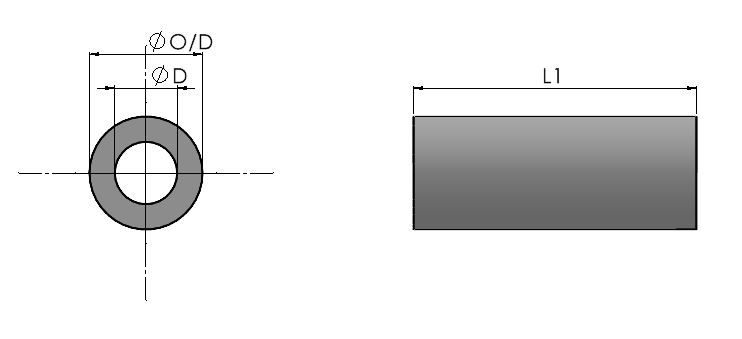

PART NO.	THROUGH HOLE	BODY O/D	LENGTH 1
2240 03	2.2	4	3
2240 05	2.2	4	5
2240 10	2.2	4	10
2240 15	2.2	4	15
2240 20	2.2	4	20
3560 02	3.5	6	2
3560 03	3.5	6	3
3560 04	3.5	6	4
3560 05	3.5	6	5
3560 08	3.5	6	8
3560 10	3.5	6	10
3560 12	3.5	6	12
3560 15	3.5	6	15
3560 18	3.5	6	18
3560 20	3.5	6	20
3560 25	3.5	6	25
3560 30	3.5	6	30
4380 02	4.3	8	2
4380 03	4.3	8	3
4380 04	4.3	8	4
4380 05	4.3	8	5
4380 08	4.3	8	8
4380 10	4.3	8	10
4380 12	4.3	8	12
4380 15	4.3	8	15
4380 18	4.3	8	18
4380 20	4.3	8	20
4380 25	4.3	8	25
4380 30	4.3	8	30
4570 03	4.5	7	3
4570 05	4.5	7	5
4570 12	4.5	7	12
4570 20	4.5	7	20
4570 30	4.5	7	30
5310 02	5.3	10	2
5310 03	5.3	10	3
5310 04	5.3	10	4
5310 05	5.3	10	5
5310 08	5.3	10	8
5310 10	5.3	10	10
5310 12	5.3	10	12
5310 15	5.3	10	15
5310 18	5.3	10	18
5310 20	5.3	10	20
5310 25	5.3	10	25
5310 30	5.3	10	30
