Expansion Insert for Thermoset

Series 20110 Type: DMK

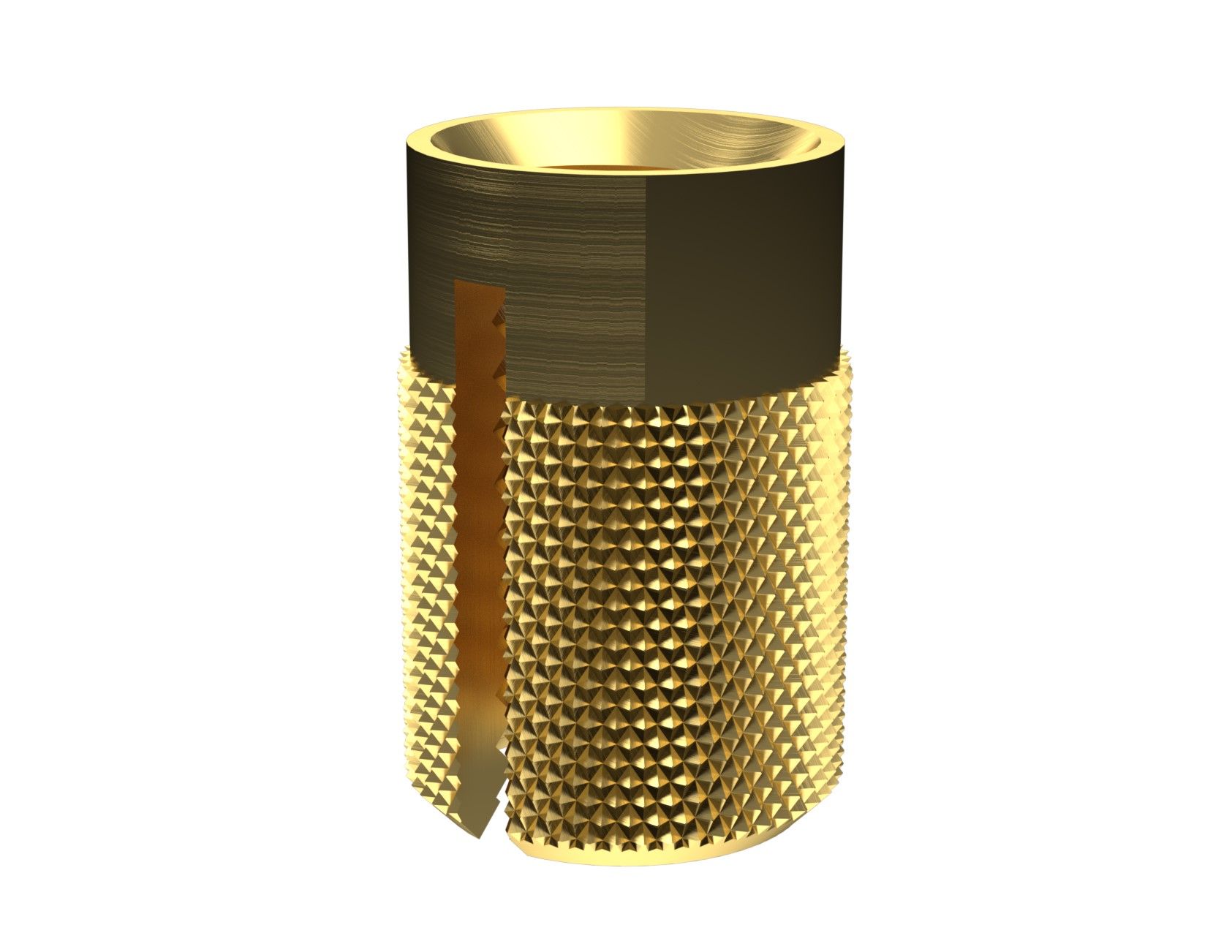

DMK Spancert Series Inserts are designed to provide strong reusable threads in thermoset and other hard plastics. On installation, the insert collapses as it is pushed into the receiving hole. Insertion of the screw expands the sharp diamond points of the knurl into the surface of the hole and penetrates the plastic. This provides a high resistance to torque and pullout loads.

Material and Finish: Brass Self Colour

To Specify Use: Series No / Part No (eg 20110 DMK030H048)

Click here to view this page as a PDF document.

Request Information:

About Series: Series 20110 Type: DMK

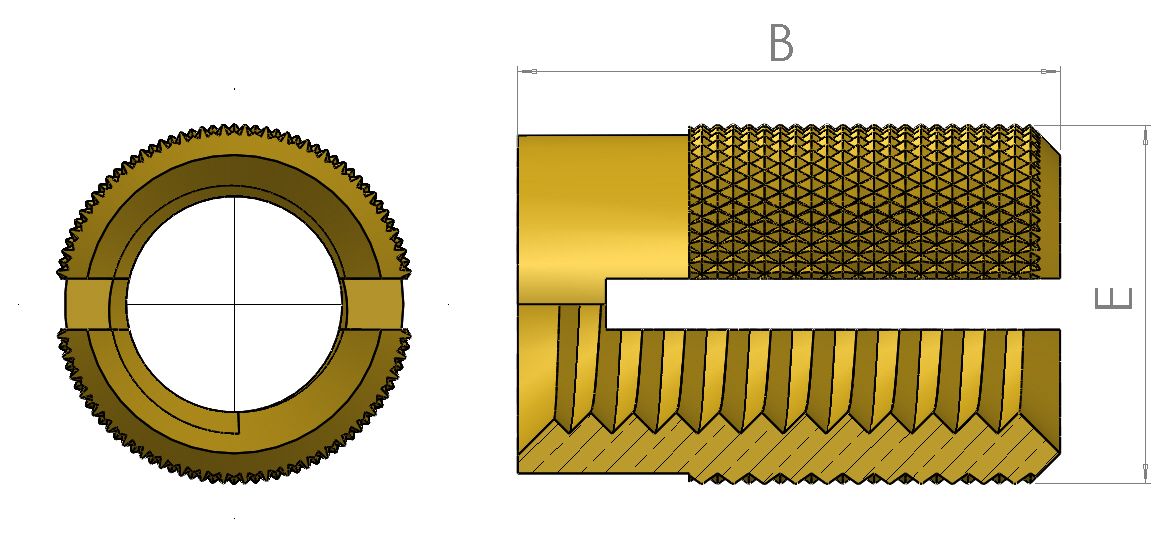

PART NO.	THREAD A	EXT. DIAM. E	LENGTH B	MIN. WALL W	HOLE DIAM. L
DMK020H040	M2.0	3.45	4.00	2.4	3.2 - 3.3
DMK025H048	M2.5	4.20	4.80	3.2	4.0 - 4.1
DMK030H048	M3.0	4.20	4.80	3.2	4.0 - 4.1
DMK035H064	M3.5	5.00	6.40	3.6	4.7 - 4.8
DMK040H080	M4.0	5.83	8.00	4.0	5.5 - 5.6
DMK050H095	M5.0	6.60	9.50	4.8	6.3 - 6.4
DMK060H127	M6.0	8.30	12.70	6.0	7.9 - 8.0
DMK080H127	M8.0	9.90	12.70	7.0	9.5 - 9.6
