Latch Clips

Series 40201 Type: SL

SL Spring Latch Clips provide a very convenient way of fastening any detachable service hatch or door into position or even used purely as a door latch in thin sheet metal products. There are various shapes and sizes to offer the designer the choice of pullout loads. Parts 2108 & 2130 are self mounting without the need for riveting. For information on mating studs see our 40301 series.
Material: Spring Steel Finish: Oiled or Trivalent Zinc

Click here to view this page as a PDF document.

Request Information:

About Series: Series 40201 Type: SL

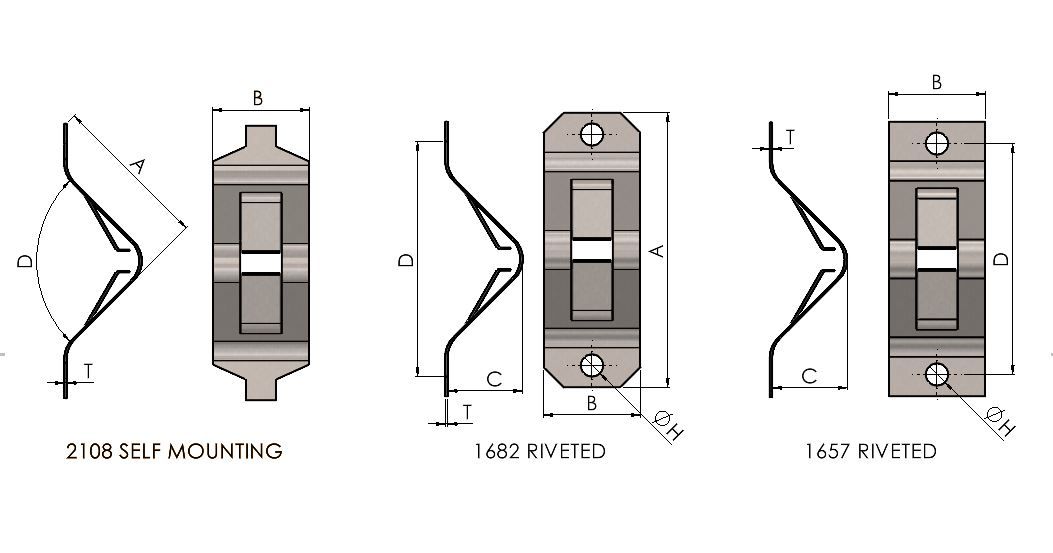

PART NO.	APPROX PULL OFF	MATINGPART	DIM A	DIM B	DIM C	DIM D	DIM H	DIM T
1682	6.4KG	3847 / 3848	25.4	11.2	6.8	19.0	3.35	0.46
2108	9.1KG	3849 / 2141 / 3850	18.0	16.0	3.0	40 DEG	9.52	0.56
1657	5.0KG	3845 / 3846	50.5	17.5	15.7	38.1	3.33	0.51
