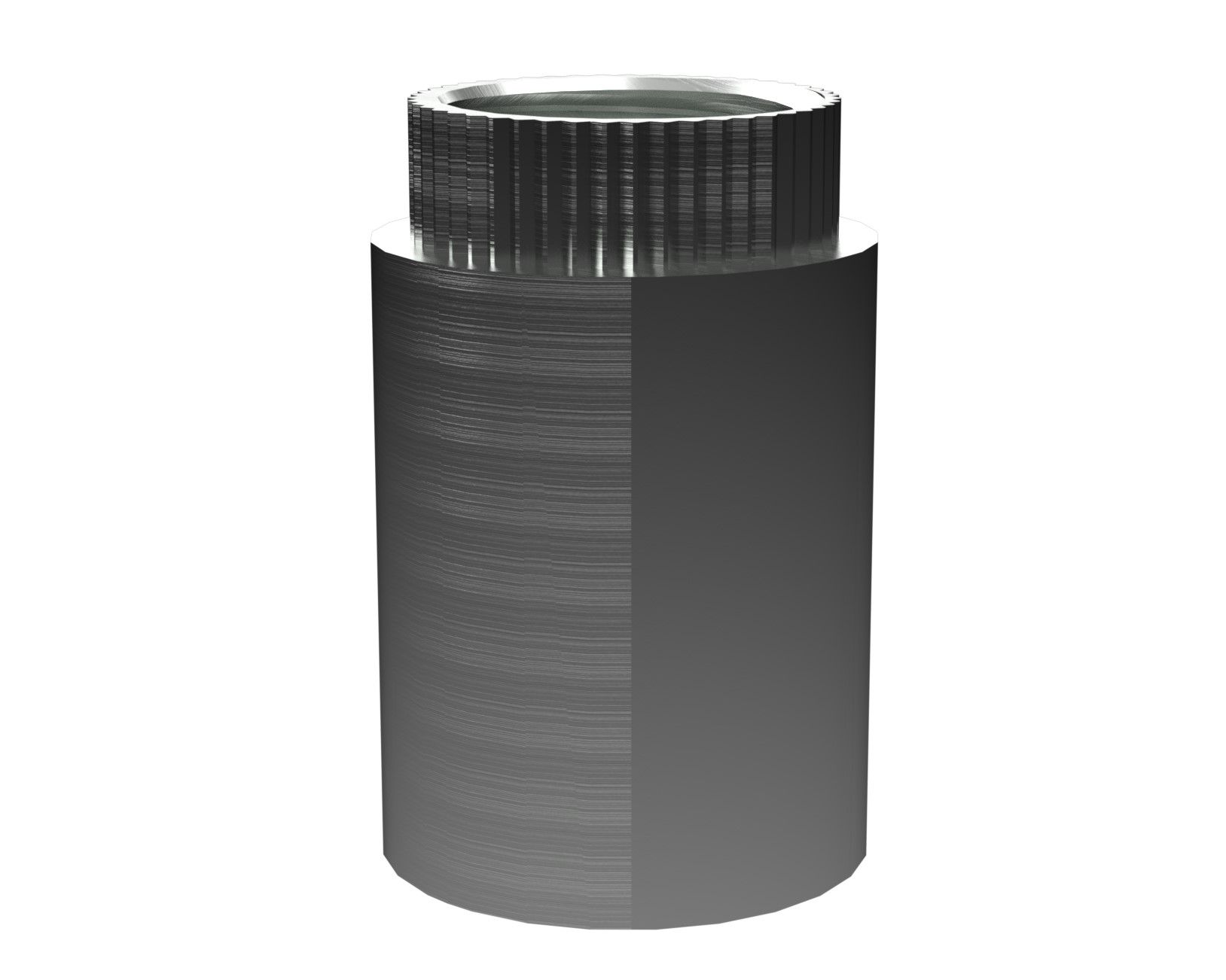

Broaching Stand Offs For PCB

Series 30318 Type: CBFE

Broaching Standoffs are for use in Circuit boards or thin sheet materials softer than RB-65. The broaching action during installation creates excellenty retention in the board giving a secure mounting for components & hardware. Various lengths are available so boards can be stacked at the required distance. Non threaded versions are also available if prefered.

Materials & Finishes
Steel Electro Tin (Code CBFE)
303 Stainless Steel (Code CBSS)

Length Options

Click here to view this page as a PDF document.

Part Lengths

Legend
•	Usually Available from Stock
•	Special Order Only
•	Not Available

Please refine your sample request by selecting a length from the following table; your selected sample has been highlighted:

PART	3	4	6	8	10	12	14
CBFE M3	•	•	•	•	•	•	•
CBFE 3.6	•	•	•	•	•	•	•
CBFE 4.2	•	•	•	•	•	•	•

Request Information:

About Series: Series 30318 Type: CBFE

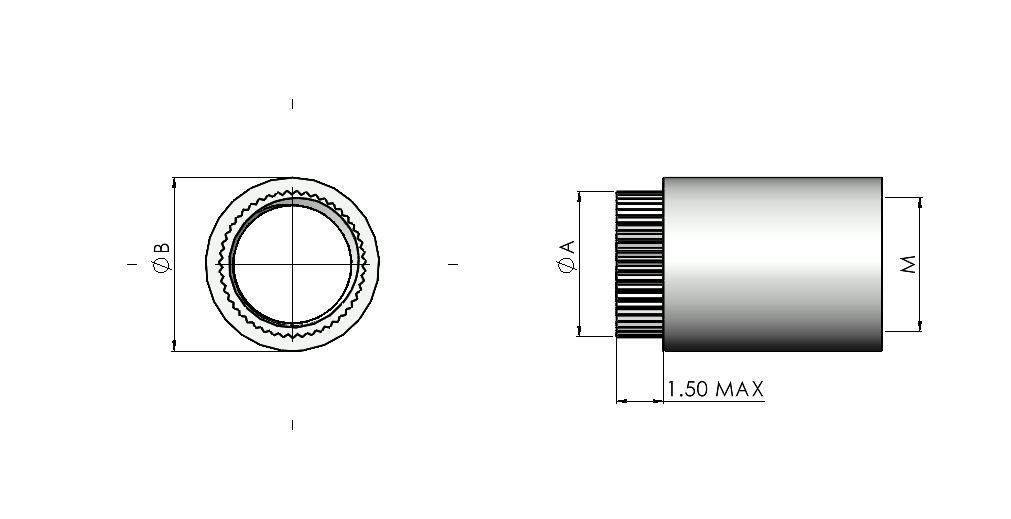

PART NO.	THREAD M	THROUGH HOLE	SUITABLE SHEET	BODY DIAM. B	LEAD DIAM. A	HOLE SIZE
CBFE M3	M3	-	1.6	5.56	4.68	4.20
CBFE 3.6	-	3.6	1.6	7.14	5.87	5.40
CBFE 4.2	-	4.2	1.6	8.74	6.81	6.40
